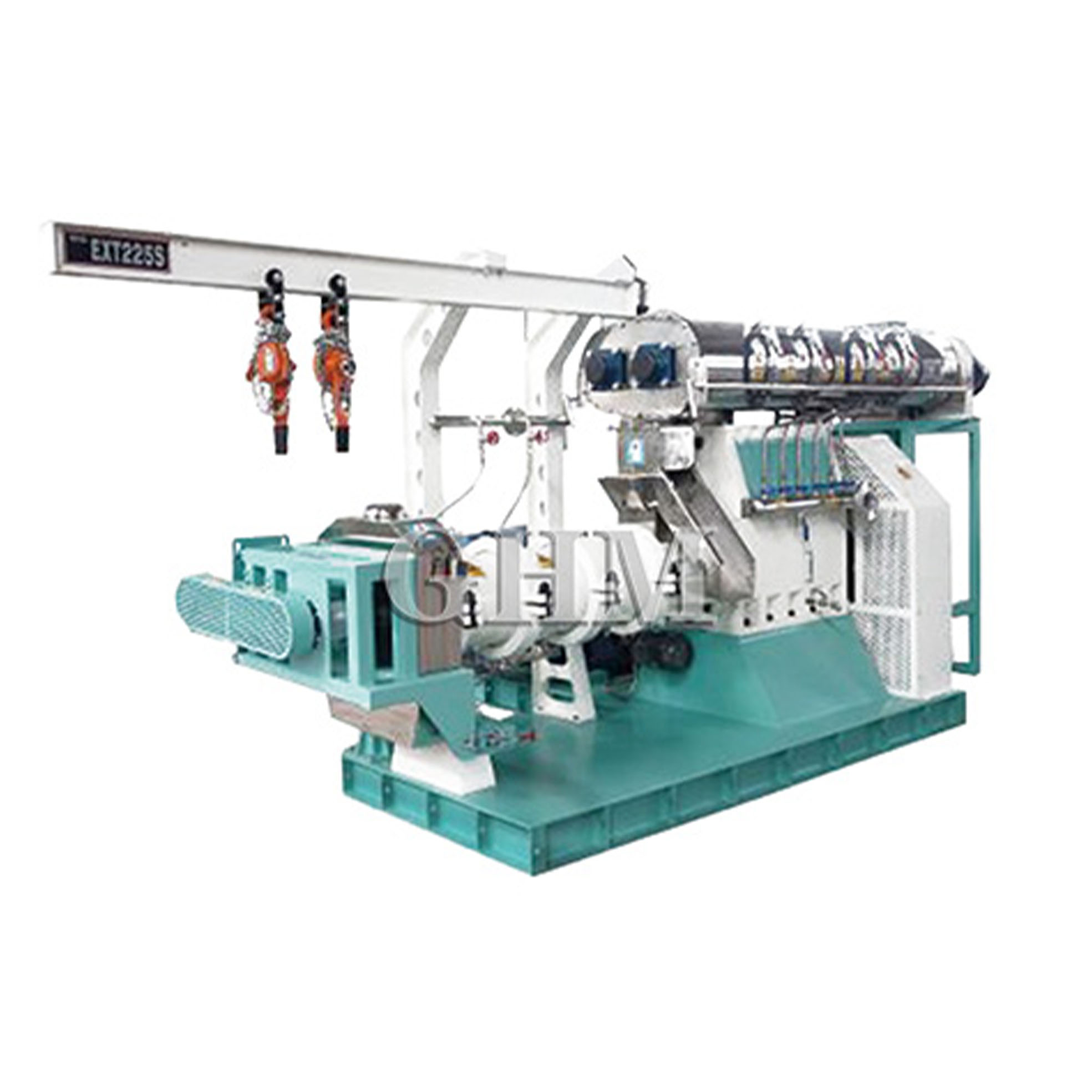

EXT Series Steam Raw Material Extryder EXT155S

EXT Series Steam Raw Material Extryder

Main Feature

1. The new design improves the ability of the main shaft to withstand thrust and torque, and the main bearings are imported from the original;

2. The material enters the bulking section freely, and the specially designed feeding section ensures that the material is not blocked or returned;

3. There is a fast discharge device under the tempering device, which can prevent materials or foreign bodies from entering the bulking section in an emergency;

4. Enhance the adaptability of materials, can continuously, stably and efficiently produce soybeans, corn, compound feed, etc.;

5. With double configuration of wet expansion machine and expander, only a small number of components need to be replaced to achieve the conversion of expansion and expansion process to produce different kinds of feed;

6. Especially suitable for large and medium-sized feed raw material treatment, expanded Suckling pig feed and other livestock and poultry feed, and pelleting unit into an expanded pelleting section.



Technical Specification

Model Spindle Power (Kw) Tempering Action (Kw) Feeding Action (Kw) Productivity (T/H) Machine Weight(Kg)
Extruded Soybean Extruded Corn Extruded Full Price Feed
EXT135S 55 2.2 1.5 1.2-1.6 / 1.5-2.5 2000
EXT155S 90 2.2 1.5 2.0-3.0 1.0-1.5 2.5-4.0 2600
EXT200S 132 5.5 2.2 3.5-4.5 1.3-2.0 4.0-7.0 3500
EXT225S 200 5.5 2.2 5.5-6.5 3.0-3.5 6.0-8.5 5000
