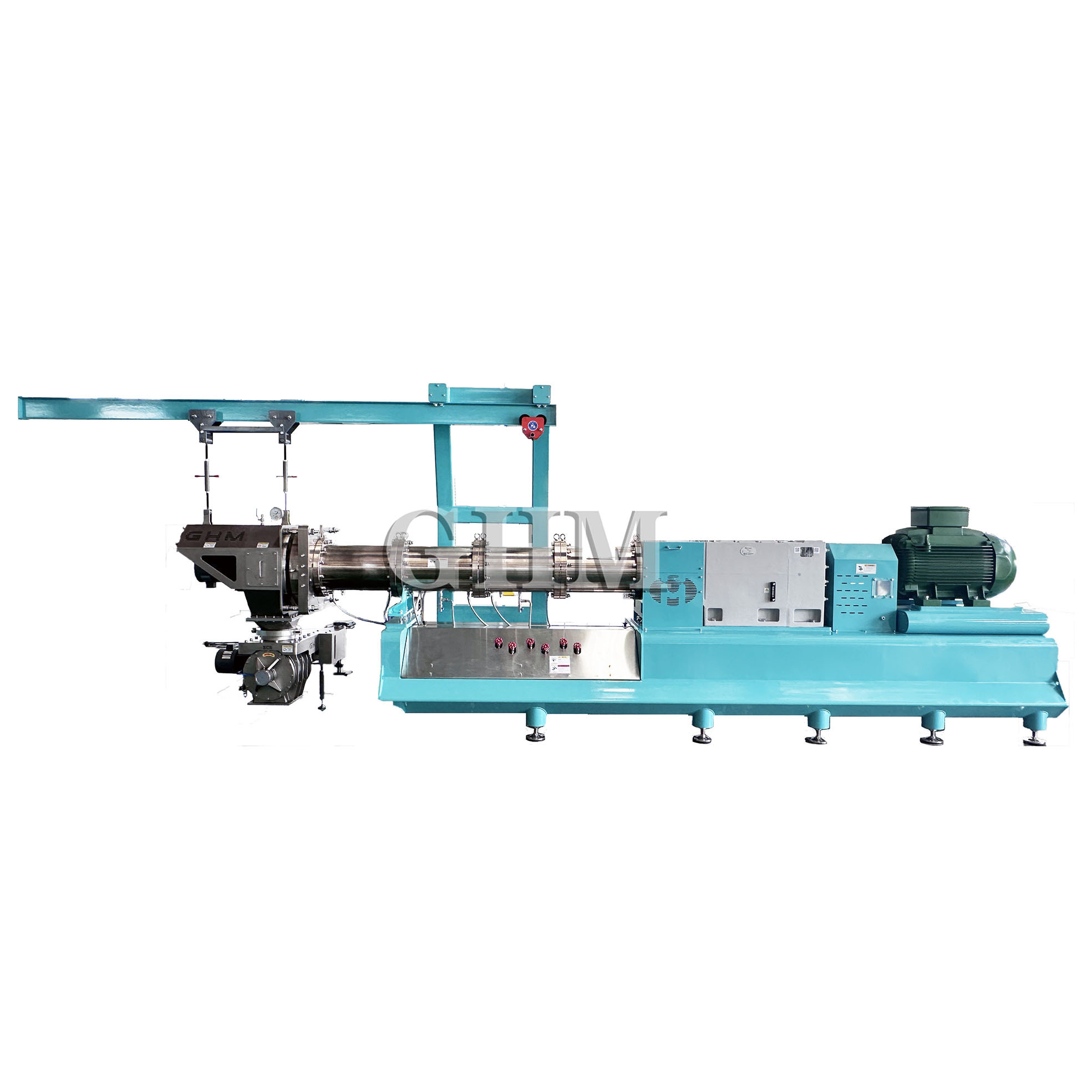

Twin Screw Steam Aquatic Extruder
Main Feature
1. Reducer adopts SEW, smooth transmission, low failure rate.
2. Special waterway design, more suitable for high-grade extruded material production.
3. Screw sleeve surface nickel plating, built-in special wear-resistant alloy lining, bearing greater impact.
4. Unique twin screw structure, simply change the screw configuration or change the production parameters can produce a variety of products.
5. The large main motor power configuration of the machine, in order to ensure the torque demand under various working conditions, make the expansion production operation more convenient, and more efficient and energy-saving.

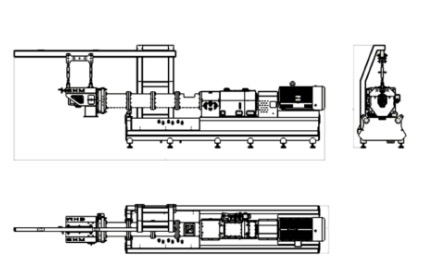

Sample Drawing
Technical Specification
| Model | Power (Kw) | Floating Capacity (T/H) | Submerged Capacity (T/H) | Cutter Power (Kw) |
| GHM136X2 | 260/315 | 6-8 | 4-6 | 5.5 |
| GHM156X2 | 355/400 | 8-12 | 6-10 | 7.5 |
