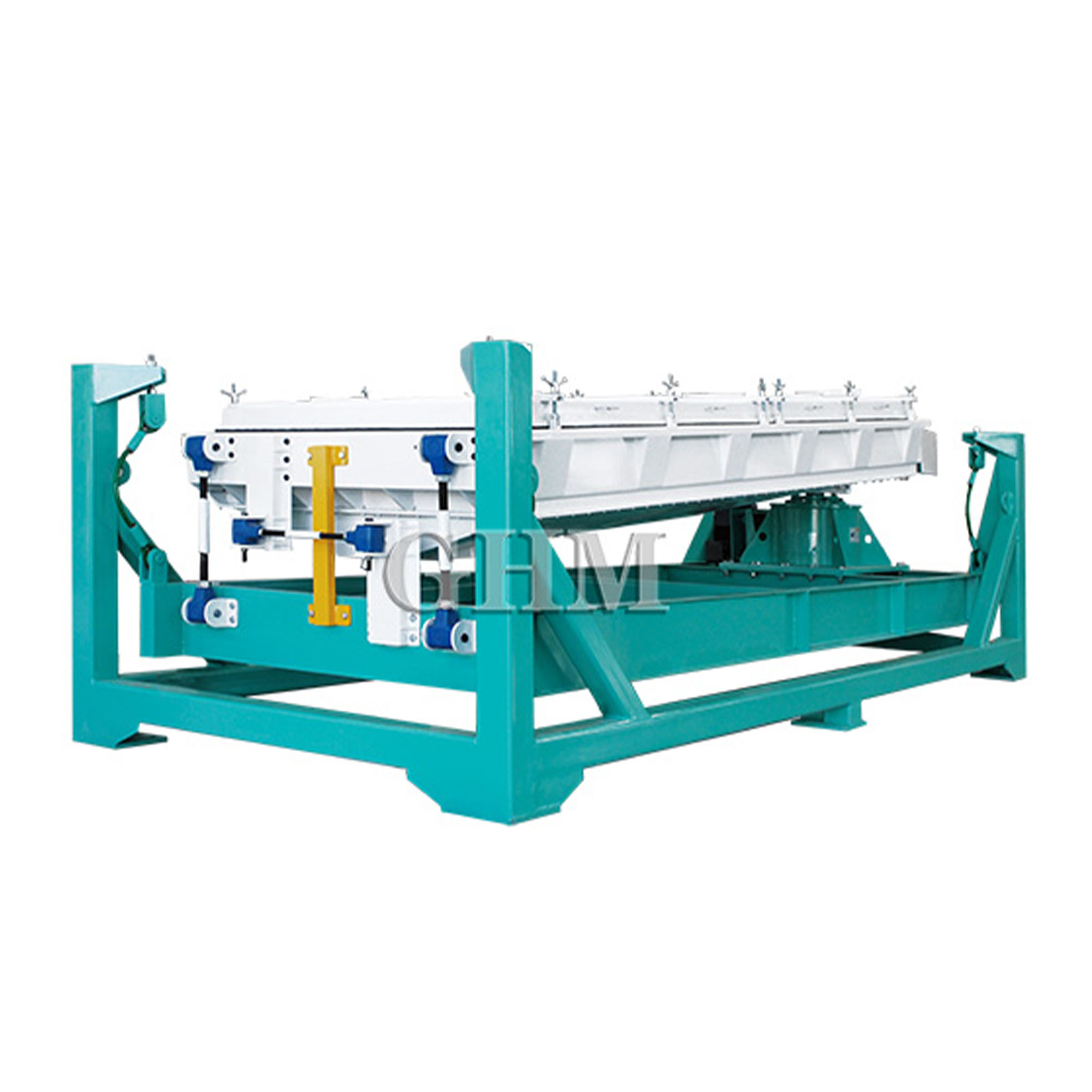

GHM Series Rotary Sifter HHFJH80X2d

Suitable for the grading of particles and crushed materials, as well as the cleaning and grading of some particles and crushed materials, with belt drive form.

Main Feature

1. Suitable for the grading of particles and crushed materials, as well as the cleaning and grading of some particles and crushed materials, with belt drive form.

2. According to different screening requirements, the mesh number and layer number of the screen can be configured to achieve the classification of coarse materials, finished materials and powder materials.

3. Special balance mode, the eccentricity of transmission parts, elastic force of polymer nylon plate and mass inertia of bottom plate are considered in the design of embedments, so as to achieve the best amplitude of screening when rotating.

4. The press screen mechanism is convenient and flexible, and the screen can be changed quickly. Low failure rate, less maintenance, high output.



Technical Parameter

Model HHFJH80×2d HHFJH110×2d HHFJH130×2d HHFJH140×2d HHFJH153×2d HHFJH170×2d
Screen area (mm) 800×2200 1100×2500 1300×2800 1400×3000 1530×3000 1700x3600
Number of screen layers 2 2 2 2 2 2
Screen specifications Upper 2, 4, 2x4, 4x8 mesh, etc., lower 10, 12, 16 mesh, etc
Power 2.2 2.2 3 4 5.5 7.5
Yield (t/h) Particles 5-8 8-10 10-15 16-22 20-25 23-30
Powder Lot 3-4 4-5 5-8 8-12 10-15 15-20
