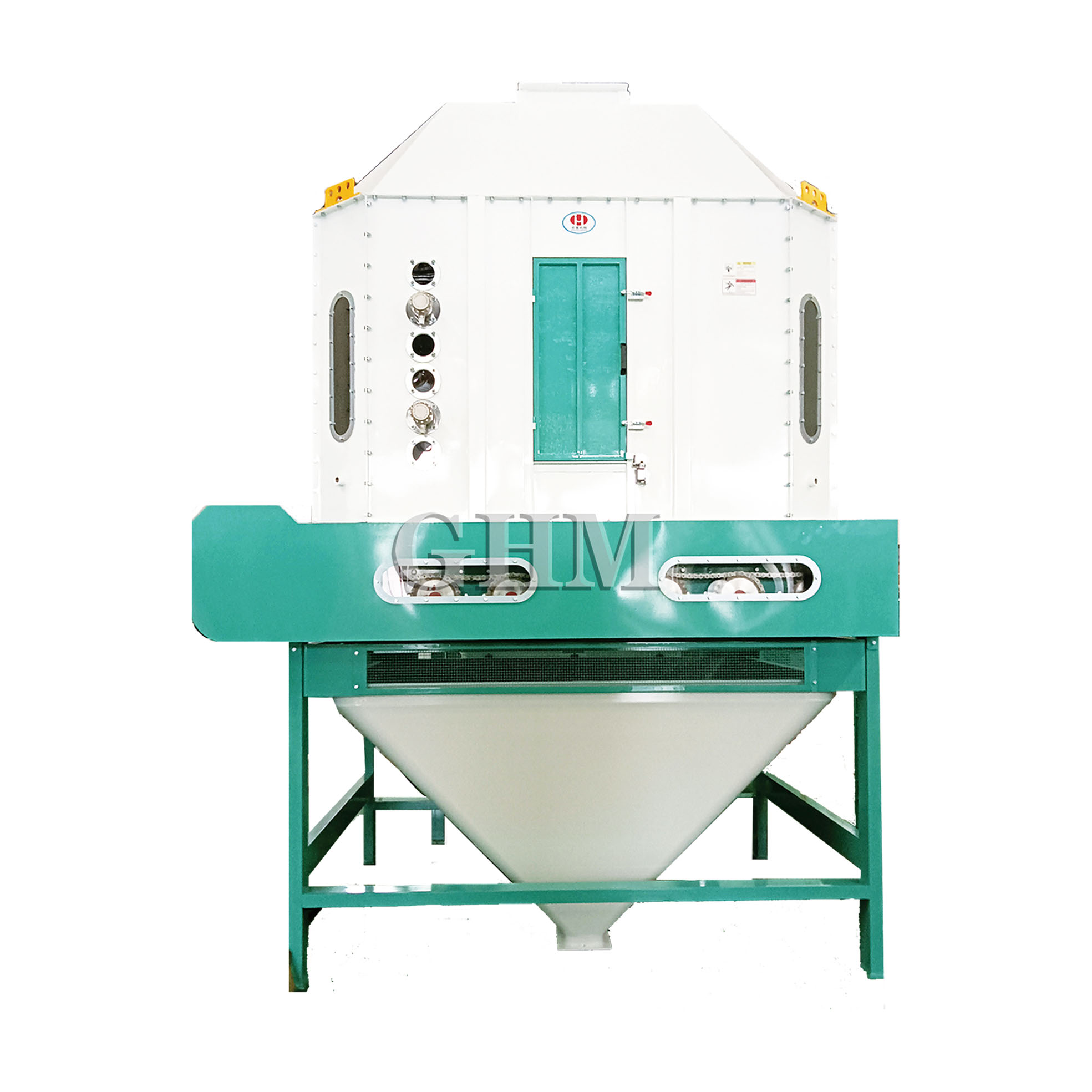

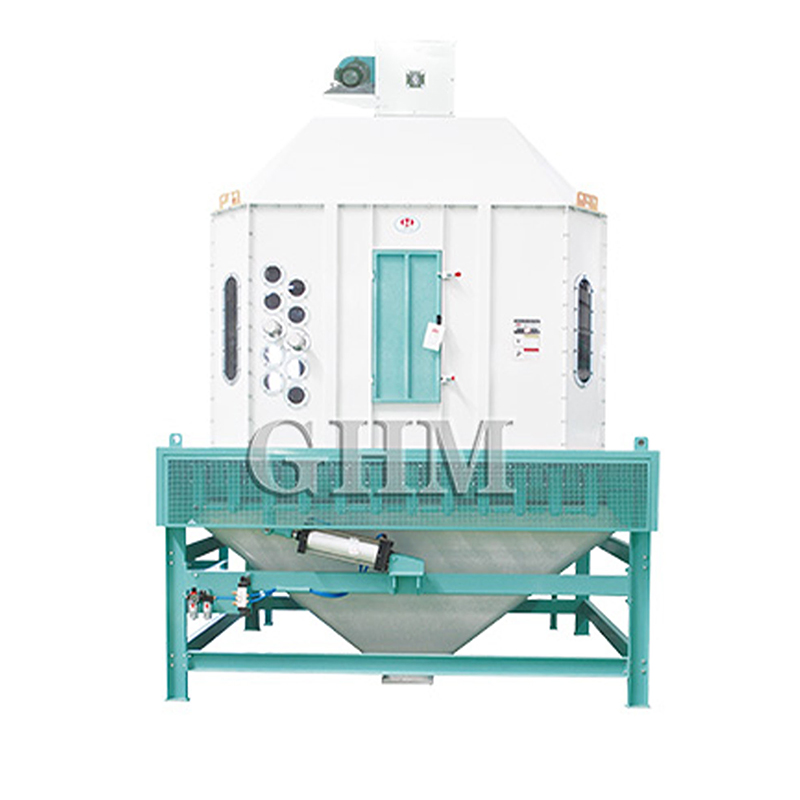

GHM Series Flap Cooler HHKLY

HKLY series impeller cooling machine is an efficient cooling equipment developed by Jiangsu Fast Machinery Co., LTD. It is mainly used in the pelleting section of feed, biomass and fertilizer industries.

1. HKLY impeller cooling machine product introduction

HKLY series impeller cooling machine is an efficient cooling equipment developed by Jiangsu Fast Machinery Co., LTD. It is mainly used in the pelleting section of feed, biomass and fertilizer industries. The device rapidly reduces the temperature of high-temperature granular materials to close to room temperature through counter-current cooling principle, while effectively removing the moisture in the particles, ensuring the hardness of the particles and preventing mildew.



HKLY series impeller cooling machine adopts countercurrent cooling mode, so that the cooling wind and the granular material move in the opposite direction. Specifically, the cooling air enters from the bottom of the device and exits from the top after passing through the material layer, while the material is gradually cooled from top to bottom under the action of gravity. In this process, the cooling wind is in full contact with the material, taking away the heat and moisture in the material, so as to achieve the effect of cooling and drying.



2. Structural Characteristics

Impeller discharging structure: The equipment adopts impeller discharging device, the action is soft, no damage to the material, clean discharging, no manual cleaning when changing production.

Adjustable conical bulk material mechanism: It is equipped with adjustable conical bulk material mechanism, uniform cloth, to ensure the same cooling effect.

Rotary levelling mechanism (optional) : Optional rotary levelling mechanism, so that the height of the material layer in the cooling chamber is consistent, further improve the cooling effect.

Stainless steel: The top is made of stainless steel, which can effectively prevent the rapid corrosion caused by the accumulation of moisture on the top of the equipment and extend the service life.

Octagonal bin design: Octagonal bin design, stable structure, help material flow and heat dissipation.



3. Technical Parameters

Model Volume(M) After Power (Kw) Production (T/H) After Cooling Time (Min) Cooling Temperature (℃) Precipitation Rate (%)
SKLY16x16 2.5 1.1+0.55 4-6 8-15 ≤Indoor Temperature+5 2
SKLY20x20 5 1.1+0.55 6-10 8-15 ≤Indoor Temperature+5 2
SKLY22x22 6 1.1+0.55 10-15 8-15 ≤Indoor Temperature+5 2
SKLY24x24 8 1.1+0.55 15-22 8-15 ≤Indoor Temperature+5 2
SKLY28x28 10 1.1+0.55+1.5 18-25 8-15 ≤Indoor Temperature+5 2
SKLY32x32 15 1.1+0.55+1.5 20-30 8-15 ≤Indoor Temperature+5 2



4. Application Field

Feed industry: Used for pellet feed cooling after granulation, improve the storage stability of feed.

Biomass industry: suitable for cooling treatment of biomass pellet fuel.

Fertilizer industry: Used for cooling fertilizer particles to ensure fertilizer quality and storage safety.

Other industries: such as chemical, food and other industries in granular material cooling operations.
