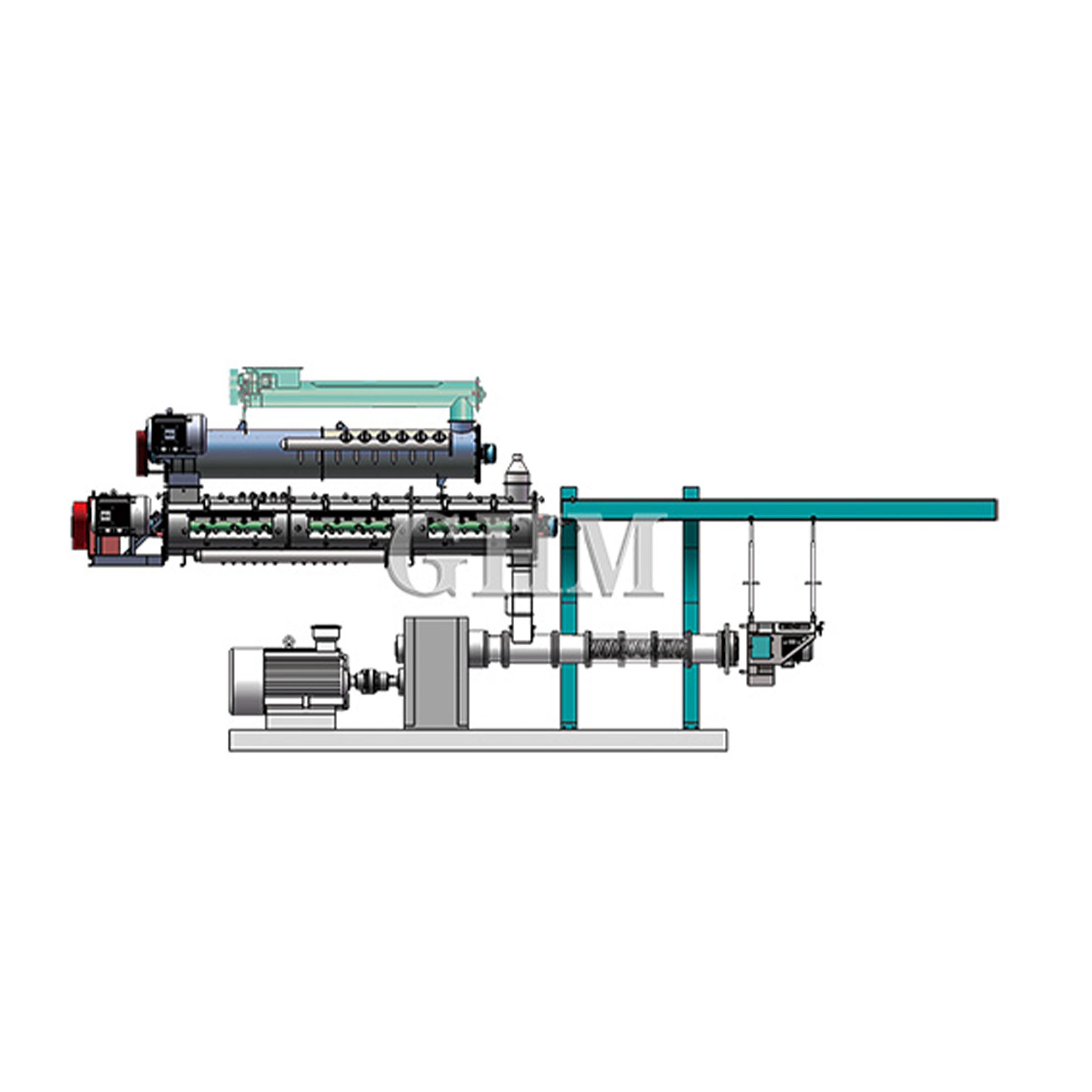

GHM PHD Series Single Screw Steam Aquatic Extruder PHD135

The capacity of the extruder does not decrease with the extension of the use time, and the new material increases the life of the wearing parts by 2-3 times, and the service life of the screw can reach 8000-10000 tons.

Main feature

1. The capacity of the extruder does not decrease with the extension of the use time, and the new material increases the life of the wearing parts by 2-3 times, and the service life of the screw can reach 8000-10000 tons;

2. Equipped with steady-state mixed shear screw, non-rapid expansion process, smooth surface of expanded material particles, uniform appearance and beautiful appearance;

3. Production of φ3.0mm tilapia, extruder capacity up to 5t/h;

4. Flexible combined cavity and combined single screw feed production of various materials to provide a better combination scheme, quick replacement of structure, convenient production of a variety of float, sediment, pet food, full-fat soybeans and other products;

5. Efficient use of energy, reduce energy consumption, reduce processing costs.



Technical Specification

Model The Host Power (Kw) Feeding Power (Kw) Uniaxial Conditioning Power (Kw) Two Axle Differential Conditioning Power (Kw) Capacity (T/H)
PHD135 90 1.5 4 11 1-3
PHD165 160 2.2 4 11 3-6
