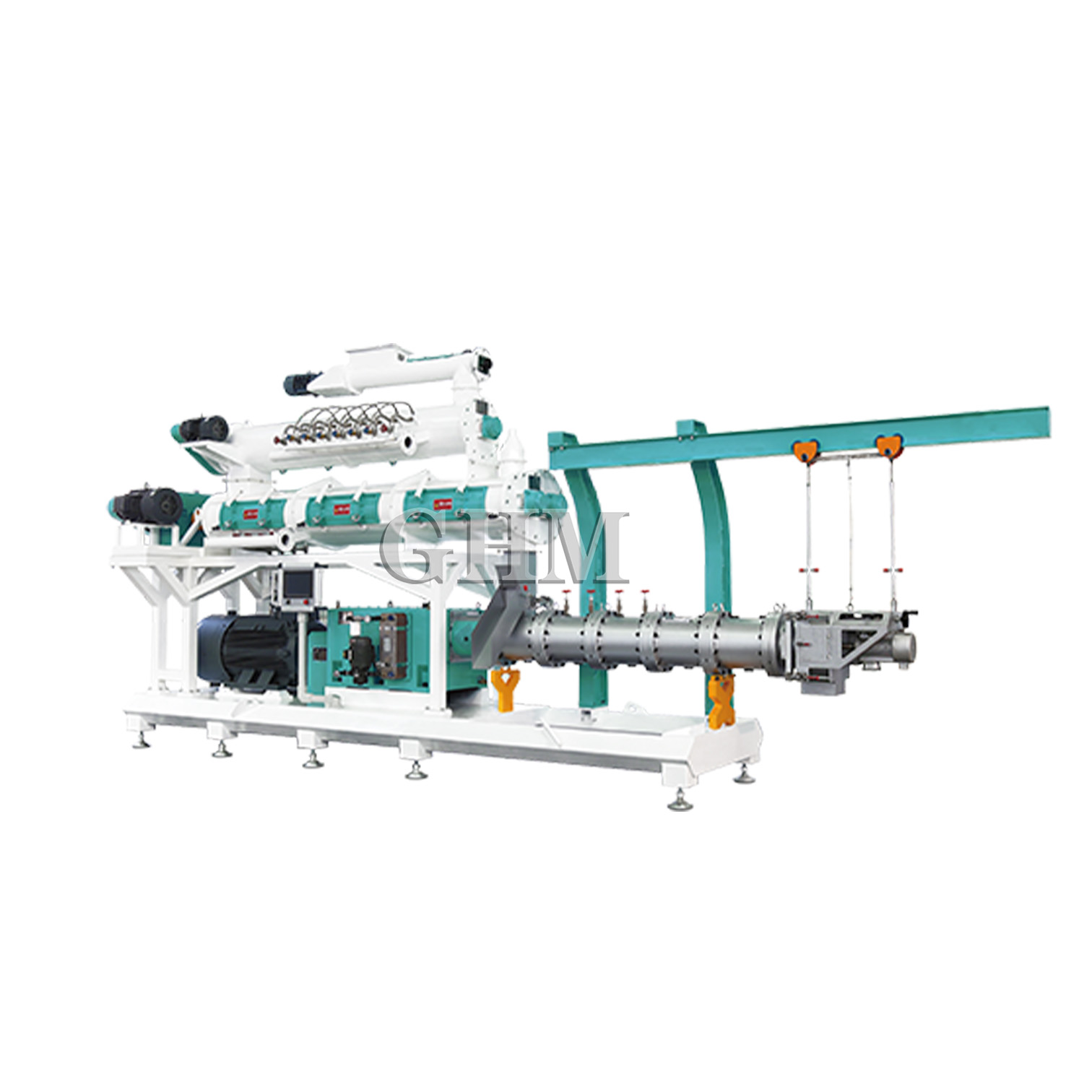

Main Feature
1. High life gear box; Wear-resistant alloy screw bushing: screw service life > 22,000 tons, bushing service life > 50,000 tons, gear box free warranty 30000 hours; Integral forging expansion cavity, no leakage deformation; Expansion chamber double jacket, can be heated or cooled.
2. High-precision gear, imported high-quality bearings, oil seals, advanced gear box design and processing technology control. Equipped with torque limiter to ensure smooth, safe and reliable transmission.
3. Fully engaged, zero clearance twin screw mechanism, effective control of shear force, to ensure that all materials in the expansion cavity ripening time and particle expansion coefficient is consistent.
4. The new all-wear-resistant alloy screw and bimetal expansion cavity inner sleeve can effectively reduce wear and ensure the long-term stable operation of the equipment under the condition of high capacity and high quality.
5. Effectively distribute the reasonable shear force in different areas of the extrusion chamber, and effectively increase the output under the premise of ensuring high quality.
6. The turbulent discharge device makes the extruded extruded material more beautiful, and the output of the small hole diameter mold is increased by 30%-40%. The material shape is uniform and stable.
7. The automatic control system simplifies the operation and reduces the labor intensity. Keep all data recorded to minimize the impact of the operator on the quality of the expanded product; European advanced control components ensure the stability of the control system.
Technical Specification
| Model | Power Feed Power (Kw) | Single-Axis Quenching Power (Kw) | Dual-Axis Differential | Quenching Power (Kw) | Capacity (T/H) |
| PHS95*2 | 160 | 2.2 | 4 | 11 | 2-4 |
| PHS120*2 | 250 | 2.2 | 5.5 | 18.5 | 5-7 |
| PHS150*2 | 315 | 2.2 | 5.5 | 18.5 | 8-10 |
| PHS155*2 | 355 | 2.2 | 7.5 | 22 | 10-12 |
