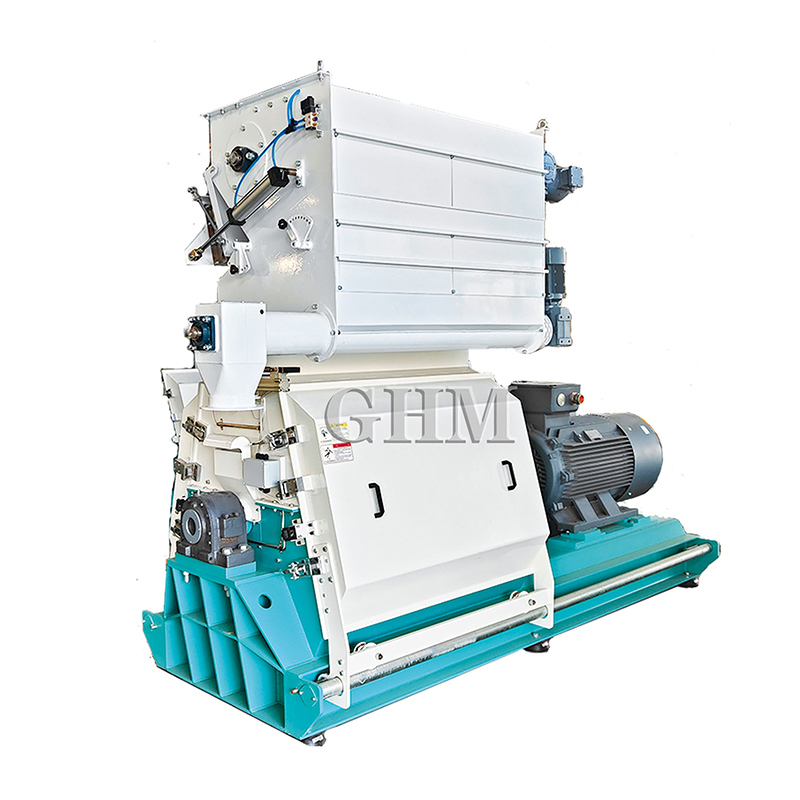

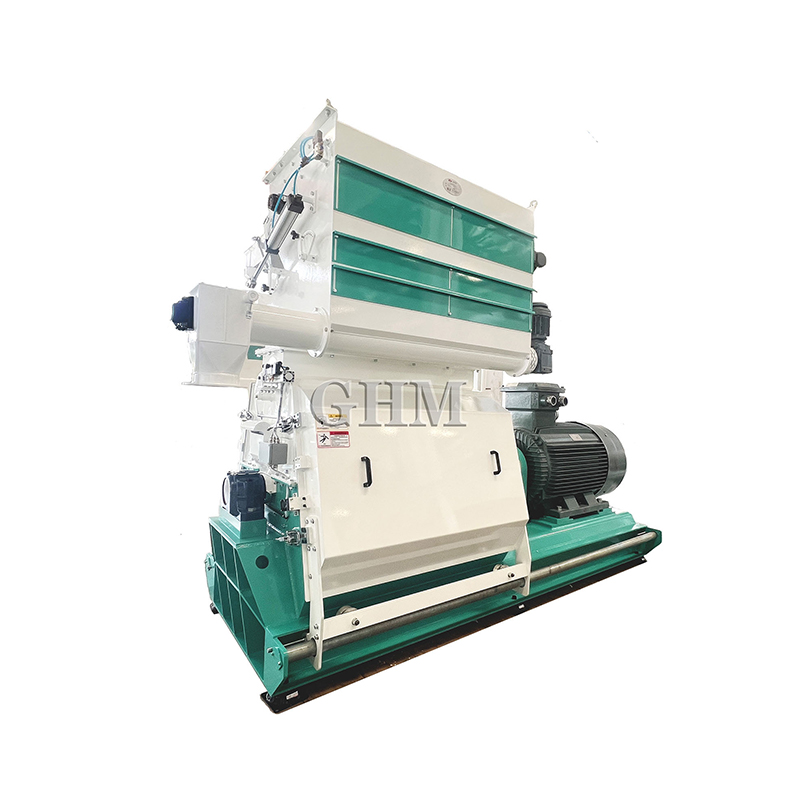

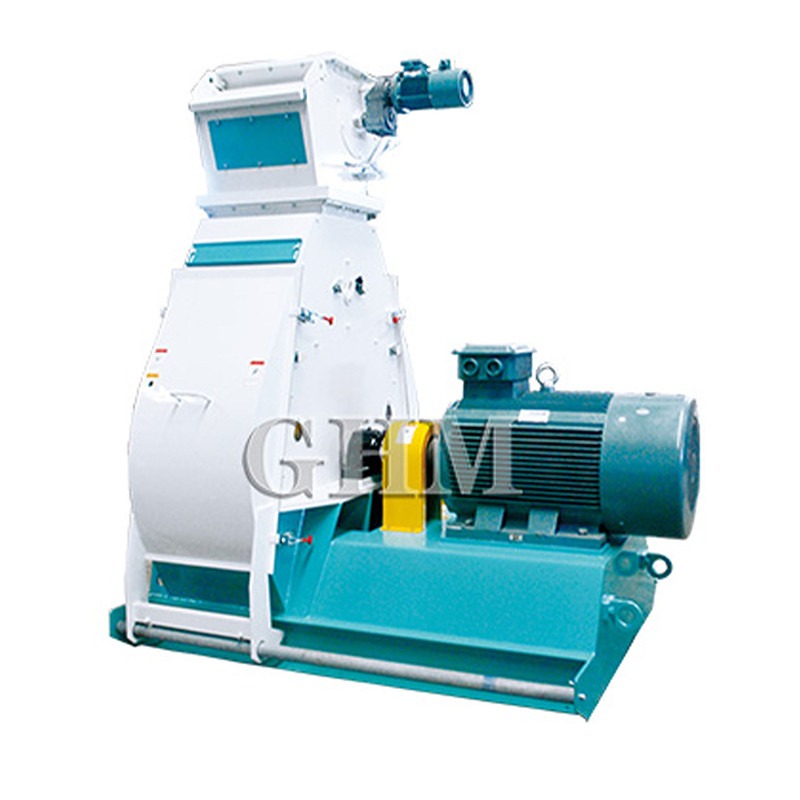

GHM SWFL Series Vertical Pulverizer SWFL150

Patented air separation type gravity slag removal mechanism, specially designed feeding arch breaking device, 100% impurity removal.

Main Feature

1. Vertical shaft no screen crushing structure, so that material crushing, crushing, wind separation, etc. are located in the same confined space, saving energy consumption, productivity compared with similar equipment increased by 30-50%;

2. The fineness of crushing 60-200 mesh can be adjusted continuously, the temperature rise of crushing materials is low, and the particle size is uniform;

3. The grinding disc and classifying impeller are driven separately, and the material is classified by air flow;

4. Patent oriented tooth hammer, patent shear ring, enhance cutting and kneading force, break circulation layer, improve crushing efficiency;

5. Patented Mosaic alloy wear-resistant plate, reasonable layout of alloy position, prolong the service life of parts;

6. Patented air separation type gravity slag removal mechanism, specially designed feeding arch breaking device, 100% impurity removal;

7. Hydraulic opening device, easy to open the cover, inspection and maintenance.



Technical Parameter

Model SWFL110 SWFL130 SWFL150 SWFL170
Rotor diameter (mm) 1100 1300 1500 1700
Power (kw) 110 132 160 220
Yield (t/h) 3.5-45 5-7 6-12 8-15
