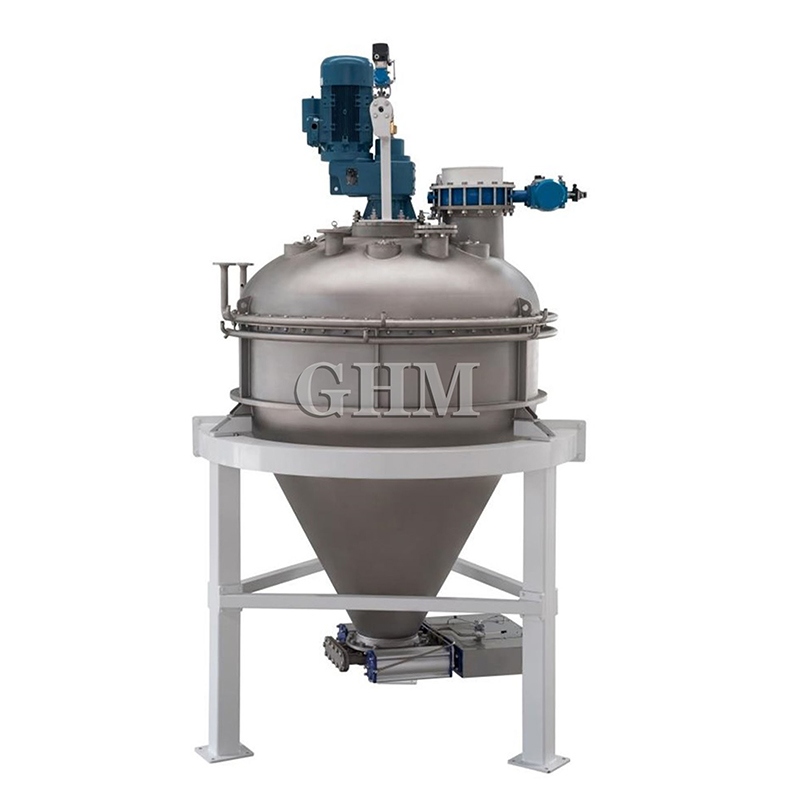

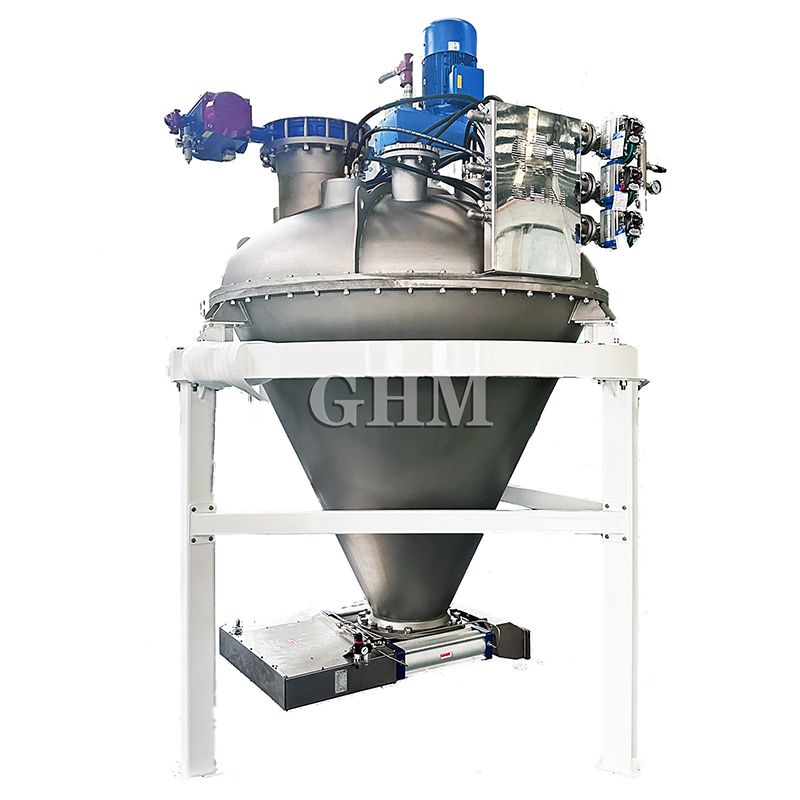

GHM Vertical vacuum sprayers

Vertical vacuum spraying machine is an advanced spraying equipment, widely used in feed, biomass and fertilizer industries such as granulation section.

1. Vertical vacuum spraying machine product introduction

Vertical vacuum spraying machine is an advanced spraying equipment, widely used in feed, biomass and fertilizer industries such as granulation section. The equipment is mainly used to evenly spray grease and flavor agent on the surface of granular materials, and realize no oil mist loss through the operation in vacuum environment, ensure the uniform spraying effect, and effectively reduce the particle breakage rate. Vertical vacuum sprayer with its efficient, stable and reliable performance, has become the ideal choice for many industries to improve product quality.



The working principle of the vertical vacuum spraying machine is based on the combination of countercurrent cooling and vacuum spraying. Grease spraying is completed in a closed space without oil mist loss. The amount of liquid added ranges from 1% to 35% (as compared to the mass of the material before spraying). Spraying uniformity is good, the crushing rate is low, the vertical double helix lifting mechanism is used, with spiral protection cylinder, so that the material can be quickly circulated in the spray machine, and with multiple groups of reasonable configuration of large Angle pressure atomizing nozzles, to ensure that the variation coefficient of spraying uniformity CV value is less than 7%. In addition, the vertical vacuum sprayer is equipped with a patented tapered discharge door mechanism to ensure efficient sealing of the moving parts relative to the sealing parts to move a small distance, reduce wear, extend the service life of the seal.



2. Main structure and characteristics

Main structure

Vertical vacuum spraying machine mainly consists of the following parts:

Body: as the main frame of the entire equipment, supporting the work of other components.

Rotor: located inside the body, it is driven by a decelerating motor to rotate and drive the material to circulate in the sprayer.

Discharge door: pneumatic control, by the cylinder, connecting rod, joint, rocker arm, double rod, linkage shaft travel switch, etc., responsible for controlling the discharge of materials.

Liquid adding device: including liquid nozzle, liquid metering pipe, etc., responsible for evenly spraying liquid to the surface of the material.

Vacuum system: including vacuum pump, vacuum pipe, etc., used to maintain the vacuum in the enclosed space during the spraying process.



Feature

Good sealing: Grease spraying is completed in a closed space, without oil mist loss.

Wide range of liquid addition: the amount of liquid addition can be adjusted according to the process requirements to meet the production requirements of different products.

Good spraying uniformity: Multiple groups of reasonably configured large Angle pressure atomizing nozzles are used to ensure that the variation coefficient CV of spraying uniformity is less than 7%.

Low crushing rate: The vertical double screw lifting mechanism transmits the material gently to ensure that the crushing rate of the material is extremely low.

Patented conical discharge door mechanism: Ensure efficient sealing moving parts and sealing parts relative movement distance is small, reduce wear, extend the service life of the seal.



3. Technical parameters

Serial Number Model Number Effective Volume Power Spraying Method Material Bulk Weight G/L Spray Time Min Spray Batch P/H Capacity T/H Rpm Each Batch Weighs Kg/P
GHMPT Vertical Vacuum Spraying
1 GHMPT2000 2000 11 Ordinary Pressure 350 4.5 13.33 9.33 137 700
2 GHMPT3500 3500 18.5 Ordinary Pressure 350 4.5 13.33 16.33 137 1225
GHMPZ Vertical Atmospheric Spray
1 CHMPZ2000 2000 11 Vacuum 350 6 10.00 7.00 137 700
2 CHMPZ3500 3500 18.5 Vacuum 350 6 10.00 12.25 137 1225
3 CHMPZ5000 5000 37 Vacuum 350 6 10.00 17.50 137 1750



4. Application field

Feed industry: It is used to spray fat, vitamins, enzymes and other nutrients of pellet feed after pelletizing to improve the nutritional value and palatability of feed.

Biomass industry: Suitable for the spray treatment of biomass pellet fuel to improve its combustion performance and storage stability.

Fertilizer industry: Used for the spraying treatment of fertilizer particles to increase the added value and market competitiveness of fertilizers.

Other industries: such as chemical, food and other industries in granular material spraying operations.
